Ten Differences Between a Boiler and a Water Heater

• They’re both powered by either gas or electricity, depending on which type you purchase. Because water heaters and boilers need a fuel source to heat water, electric or natural gas varieties are available for both types of appliances.

  Some electric boilers and water heaters use electricity to operate, while others use natural gas. This is an important distinction to consider in terms of cost and fuel availability if you’re purchasing a new boiler or water heater.

Safety Tip: If you select a natural-gas-powered boiler or water heater, be sure to purchase and install a carbon monoxide detector for your safety. Learn More

• They both benefit from regular maintenance. Whether you have a boiler or water heater, you can improve their energy efficiency, prevent the need for costly repairs and increase their lifespan by scheduling regular tune-ups with a certified professional.

Ten Key Differences Between a Boiler and a Water Heater

While boilers and water heaters may seem similar since they both heat water, use electricity or fuel and need routine maintenance for optimal performance, several key features set them apart. Here are the top ten differences between a boiler and a water heater.

1. Purpose (what they’re used for):

Boilers: Boilers are primarily designed to heat your home, although combi boilers also supply hot water to your household. Boilers heat water, and then circular hot water or steam through a system of pipes and radiators to keep your home warm and comfortable.

Boilers are an integral part of a home's heating system, particularly in colder climates, where efficient, consistent heating is essential for comfort and safety.

Water Heaters: A water heater is dedicated to providing a continuous supply of hot water for domestic use, such as cooking, cleaning and bathing. Hot water is essential for everyday tasks, and most homes and apartments are equipped with a water heater to ensure that hot water is readily available on demand.

Whether you're running the dishwasher or taking a shower, the water heater ensures that you have hot water when you need it. Unlike boilers, water heaters are not designed to impact the indoor temperature of your home.

EPB Energy ProsSM Tip: Shopping for a new water heater? Check out this video for helpful tips on selecting the right kind of water heater for your household.

2. Components

Boilers and water heaters contain an array of components and mechanisms that are designed for different purposes, reflecting their unique functions in the home.

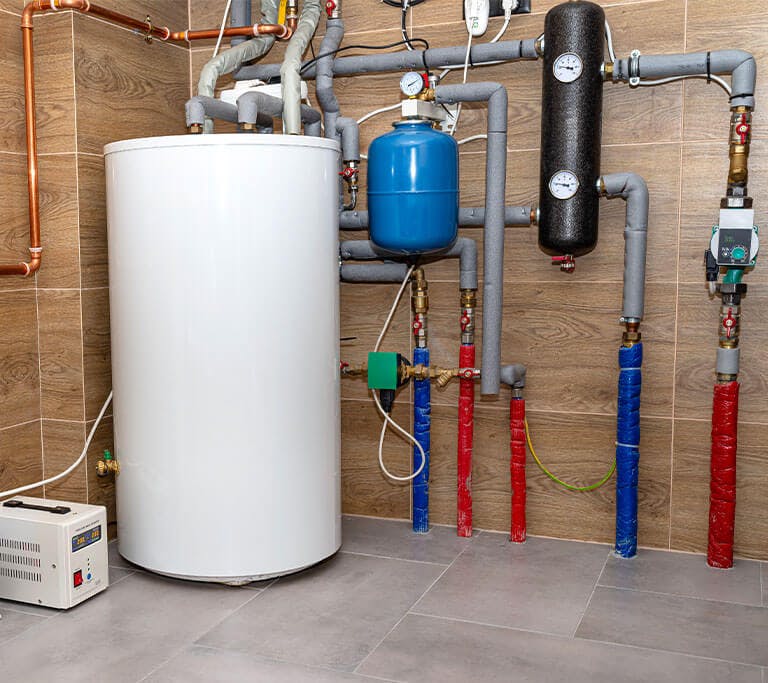

Boilers: Here are some of the components that help a boiler heat water and distribute heat throughout your home:

• Burner or Electric Element: Like water heaters, boilers are usually powered by gas or electricity, and in some parts of the world, oil. The burner or electric element heats water within the boiler system. Gas and oil burners use fuel combustion, while electric boilers utilize heating elements.

• Heat Exchanger: The heat exchanger is a critical component that transfers heat from the burner or electric element to the water. This process allows the boiler to efficiently heat water or convert it to steam for distribution.

• Circulator Pump: Boilers are equipped with a circulator pump that moves hot water or steam through a network of pipes and radiators. This pump ensures that heat is evenly distributed throughout the home.

• Expansion Tank: An expansion tank is included in boiler systems to accommodate the expansion of water as it heats, preventing excess pressure from building up within the system.

• Valves and Controls: Boilers have a variety of valves and controls, including pressure relief valves, flow control valves and thermostats. These components help regulate water temperature, pressure and flow, ensuring the system operates safely and efficiently.

Water Heaters: Here are several key components of a water heater that work together to heat water and distribute it throughout your home:

• Heating Element or Burner: Depending on whether the water heater is electric or gas-powered, it will have either a heating element or a burner. Electric water heaters use one or more heating elements, typically located inside the tank, to heat the water. Gas water heaters use a burner located beneath the tank, ignited by a pilot light or electronic ignition, to heat the water.

• Tank or Tankless System: Traditional water heaters have a storage tank where water is heated and stored until needed. Tankless water heaters, also known as on-demand water heaters, heat water directly as it flows through the unit, eliminating the need for a storage tank.

• Thermostat: The thermostat regulates the water temperature by controlling the heating elements or burner. Homeowners can adjust the thermostat to their desired temperature, typically between 120°F and 140°F (49°C to 60°C), according to the DOE’s guidelines.

• Valves: Water heaters are equipped with various valves, such as temperature and pressure relief valves, that help ensure safety by releasing excess pressure or heat. Drain valves allow for routine maintenance, such as flushing the tank to remove sediment buildup.

Understanding the components of boilers and water heaters can help homeowners make informed decisions about maintenance, repairs and system upgrades. By recognizing the differences in design and functionality, you can better appreciate how each appliance contributes to your home's comfort and efficiency.

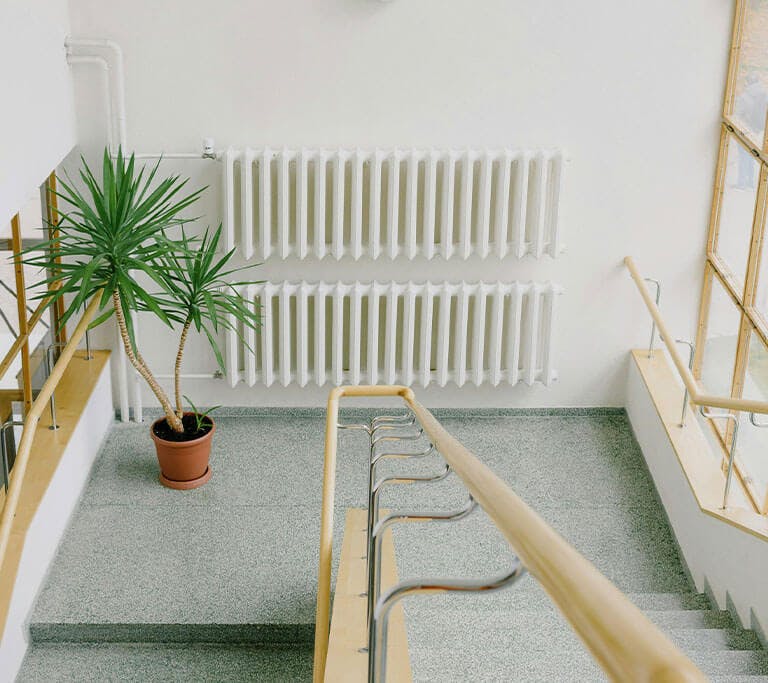

• Radiators and Baseboard Heaters: Many boiler systems use radiators or baseboard heaters as heat emitters. Radiators release heat into the air through convection and radiation, while baseboard heaters are typically installed along the base of walls to evenly distribute heat across rooms.

  According to the DOE, radiant heating systems that transfer heat directly to your floors, ceilings or panels in the wall, are usually more energy-efficient than heating systems that forcibly blow hot air into your home.

• Zoning Capability: Boilers can offer zoning capabilities, allowing homeowners to control the temperature in different areas of the home independently. This feature enhances comfort and can lead to energy savings by only heating occupied areas.

Water Heaters: Water heaters are specifically designed to provide hot water for household use rather than space heating:

• Hot Water Storage and Dispensing: Water heaters heat and store water in a tank (in the case of storage water heaters) until it's needed for domestic use. When you turn on a hot water tap, the water heater dispenses hot water through the plumbing system, supplying it to faucets, showers, dishwashers and washing machines.

• Instantaneous Heating in Tankless Systems: Tankless water heaters, also known as on-demand water heaters, heat water instantaneously as it passes through the unit. This eliminates the need for a storage tank and provides a continuous supply of hot water on demand.

• Plumbing System Integration: Unlike boilers, water heaters are integrated directly into the plumbing system, ensuring that hot water is readily available for everyday activities. They do not contribute to heating the indoor environment but focus solely on delivering hot water for domestic tasks.

4. Size & Capacity

The size and capacity of boilers and water heaters reflect their distinct functions and the demands they meet within a home.

Boilers: Boilers are typically larger and more robust due to their comprehensive role in home heating:

• Size and Installation: Boilers are generally larger than water heaters, as they need to accommodate the components required for heating and circulating hot water or steam throughout an entire home. They are often installed in basements, utility rooms, or dedicated boiler rooms, where they can connect to the home's network of pipes and radiators.

• Heating Capacity: The capacity of a boiler is measured in British Thermal Units (BTUs) per hour to indicate how much heat it can deliver. Boilers must have sufficient capacity to provide consistent and effective heating for all rooms in a home, which requires a larger unit to meet this demand.

• Multi-Functionality: Some boilers also have the capability to provide domestic hot water in addition to heating, which can further influence their size and capacity. This dual functionality requires additional components, such as a separate hot water tank or an indirect water heater, adding to their overall size.

Water Heaters: Water heaters are more compact, focusing on heating water for domestic use:

• Compact Design: Water heaters are designed to be more compact and can fit into smaller spaces such as closets, garages or utility rooms. This smaller size is due to their sole purpose of heating water for household use, without the need to distribute heat for space heating.

• Storage Tank Capacity: The capacity of a storage water heater is measured in gallons, indicating how much hot water it can store and deliver at a given time. Common capacities range from 20 to 80 gallons, with larger units serving households with greater hot water demands. Selecting the right size is important to balance hot water needs and energy efficiency.

• Tankless Options: Tankless water heaters are even more compact because they do not store water but instead heat it on demand. This design makes them an attractive option for homes with limited space, though their capacity to deliver hot water continuously depends on the unit's flow rate.

5. Lifespan

The lifespan of boilers and water heaters varies, largely influenced by their construction, maintenance, and usage patterns.

Boilers: Boilers are known for their durability and longevity, often lasting between 10 to 15 years, with some high-quality models reaching up to 30 years with proper care. Their robust construction and fewer on-and-off cycles contribute to their extended lifespan.

The lifespan of a boiler can be influenced by several factors, including the quality of installation, the type of boiler and regular maintenance. High-efficiency condensing boilers may require more frequent maintenance but can offer significant energy savings over time.

Regular maintenance is crucial to maximizing a boiler's lifespan. The DOE recommends annual maintenance checks to ensure the system operates efficiently and safely. This includes inspecting and cleaning components, checking for leaks, and ensuring the proper functioning of safety controls.

Water Heaters: Water heaters generally have a shorter lifespan compared to boilers, averaging around 8 to 12 years for traditional tank models. Tankless water heaters, on the other hand, can last up to 20 years due to their design and lack of a storage tank.

The lifespan of a water heater depends on factors such as water quality, usage patterns and regular maintenance. Hard water can lead to mineral buildup, reducing efficiency and lifespan, while regular flushing of the tank can help mitigate this issue.

To extend the life of a water heater and improve its energy efficiency, hire a professional to perform regular tune-ups such as flushing the tank annually to remove sediment, inspecting the anode rod and checking the thermostat settings.

• Advancements in Boiler Technology: Recent advancements in boiler technology have led to the development of smart boilers that can be integrated with home automation systems. These boilers can adjust their output based on real-time data, ensuring optimal efficiency and comfort.

  Additionally, modulating burners allow boilers to operate at variable levels, reducing energy waste by only producing the necessary amount of heat.

• Efficiency Standards: New standards for residential boilers require minimum efficiency ratings of 80% for gas-fired boilers. High-efficiency models can exceed these standards, offering homeowners potential energy savings and environmental benefits.

Water Heaters:

• Traditional vs. Modern Water Heaters: Traditional water heaters with storage tanks tend to be less efficient than modern tankless models. Storage water heaters continuously heat and reheat the water in the tank, leading to standby heat loss. However, newer tank models are often better insulated, reducing this energy waste.

• Energy Efficiency of Tankless Water Heaters: Tankless water heaters, also known as on-demand water heaters, are generally more energy-efficient than their storage counterparts. They only heat water when needed, eliminating standby losses.

  According to the DOE, tankless water heaters are 24–34% more energy-efficient than conventional storage tank water heaters in homes that use fewer than 41 gallons of hot water daily.

• Technological Advancements: Advances in water heater technology include the development of hybrid water heaters that combine heat pump technology with traditional heating elements.

  Heat pump water heaters can be two to three times more energy-efficient than conventional electric water heaters, providing significant energy savings over time. If you’re an EPB customer, ask your contractor or retailer about TVA’s $1300 instant rebate on a new heat pump water heater.

7. Installation

The installation process for boilers and water heaters varies significantly, reflecting the complexity and function of each system.

Boilers:

Boilers require a more complex installation process due to their role in distributing heat, and in some cases, hot water, throughout your home. They need to be connected to a system of pipes, radiators and possibly a flue for venting exhaust gases.

This complexity limits the locations where a boiler can be installed, often confining it to basements or utility rooms.

Because of the intricate nature of boiler systems, professional installation is typically necessary. A certified technician ensures that the boiler is correctly sized for your home and that all components are properly connected and functioning safely.

Water Heaters:

Water heaters are generally simpler to install compared to boilers. Their compact size allows for greater flexibility in installation locations, such as closets, garages or utility rooms.

For those with plumbing experience, installing a water heater can be a do-it-yourself project, though we recommend scheduling a professional installation to ensure safety, energy efficiency and compliance with local building codes.

8. Cost

The cost of boilers and water heaters reflects their complexity and functionality, impacting initial investment and long-term expenses.

Boilers:

• Higher Initial Cost: Boilers typically have a higher initial cost, with prices ranging from $3,000 to $12,000, depending on the type and capacity. The average cost for a new boiler is around $6,000, making it a significant investment for home heating.

• Cost Justification: The higher cost of boilers is justified by their ability to provide comprehensive heating for the entire home, often resulting in long-term energy savings due to their efficiency.

Water Heaters:

• Lower Initial Cost: Water heaters are generally more affordable, with average costs around $1,323 for a traditional tank model. Tankless models can be more expensive but offer energy savings over time.

• Frequent Replacement: Water heaters may require more frequent replacement than boilers, which can add to long-term costs. However, their lower initial price makes them accessible for most homeowners.

1. Safety Features

Both boilers and water heaters are equipped with safety features designed to protect your home and family from potential hazards.

Boilers:

• Safety Valves and Gauges: Boilers are equipped with safety valves and pressure gauges to prevent excessive pressure buildup within the system. These features are critical in avoiding dangerous situations, such as explosions or leaks.

• Automatic Shutoff: Many modern boilers include an automatic shutoff feature that activates in the event of a malfunction, further ensuring safety.

Water Heaters:

• Pressure Relief Valve: Water heaters also feature a temperature and pressure relief valve that releases excess pressure, preventing the risk of tank rupture.

• Safety Sensors: Some water heaters include additional safety sensors that detect leaks or over-temperature conditions, providing an extra layer of protection.

9. Repairs & Maintenance

Regular maintenance and prompt repairs are essential for both boilers and water heaters to ensure their longevity and efficient operation.

Boilers:

• Complex Repairs: Boilers are more complex and may require professional assistance for repairs and maintenance. Components such as burners, heat exchangers and circulation pumps may need periodic inspection and service.

• Annual Maintenance: It is recommended that boilers undergo annual maintenance by a certified technician to check for leaks, clean components and ensure efficient operation.

Water Heaters:

• Common Issues and Repairs: Water heaters are generally easier to repair, with common issues such as sediment buildup that are simple to clean. Regular flushing of the tank helps prevent sediment accumulation, improving efficiency and lifespan.

• Routine Checks: While some maintenance tasks can be DIY, water heaters still benefit from periodic professional inspections to ensure safety and efficiency.

Which is more energy-efficient?

The energy efficiency of a boiler versus a water heater depends on the specific models being compared. Generally, water heaters tend to be more energy-efficient for heating water alone, as they are specifically designed for this purpose.

However, modern boilers, particularly high-efficiency condensing models, can be very energy efficient in providing both heating and hot water. When purchasing a new appliance, look for the Energy Star rating to ensure you are choosing a model that will help reduce energy consumption and save on utility bills.

How often should I service my boiler or water heater?

Regular maintenance is crucial for both boilers and water heaters to ensure optimal performance and longevity. It is recommended that both appliances be serviced annually by a qualified professional.

This annual checkup helps identify potential issues, improve efficiency, and prevent costly repairs. For those who prefer a DIY approach, there are online tutorials available, but professional servicing is often the best choice to ensure safety and effectiveness.
